🚧 Armco Crash Barrier Dimensions, Fixing Bolts & Pedestrian Protection – Complete Installation Guide (2025) 🚧

Armco crash barriers are essential for road safety, car parks, warehouses, and industrial protection. Ensuring you have the correct dimensions, fixings, and pedestrian-friendly ends is crucial for maximum durability and impact resistance.

For high-quality Armco barrier supplies in the UK, we provide expert solutions tailored to your safety needs.

📏 Standard Armco Barrier Beam Lengths

Armco barriers come in standard sizes to fit various safety applications.

Standard Beam Size:

  • Effective Length: 3.2m
  • Total Length: 3.5m

These galvanised steel beams withstand high-impact collisions, ensuring long-lasting durability in outdoor and high-traffic areas.

📌 Armco Barrier Post Heights (Above Ground)

Choosing the right Armco barrier post height ensures proper protection for pedestrians, vehicles, and structures.

🔹 560mm – Ideal for warehouse and forklift protection.
🔹 610mm – Standard height for car parks and traffic management.
🔹 760mm – Designed for HGVs, lorries, and industrial zones.
🔹 1100mm – Double-height barrier for maximum protection in high-impact areas.

📍 Armco Barrier Post Spacing

Correct post spacing enhances impact resistance and barrier stability.

✔️ Standard Spacing – 3.2m center-to-center.
✔️ Enhanced Protection – 1.6m center-to-center.

🔩 Armco Barrier Fixing Bolts – Secure Installation for Maximum Safety

To ensure Armco crash barriers are installed securely, using the right fixing bolts is essential. Here are the standard Armco barrier bolts and fixings required:

🛠️ 1. Armco Beam Fixing Bolts

These bolts secure beams together, ensuring a strong and stable connection.

M16 x 35mm Lap Bolt & Nut – Used for bolting beams together at overlapping joints.

🏗️ 2. Armco Post Fixing Bolts

These bolts secure the beams to the supporting posts.

✔️ M16 x 50mm Post Bolt & Nut – Standard for fixing beams to RSJ and Z-section posts.

⚙️ 3. Armco Barrier Floor Fixings

If the barrier is being installed on a concrete surface, the correct expansion bolts or ground anchors must be used.

🔸 M12 x 100mm Throughbolt – Suitable for securing posts into concrete.
🔸 M16 x 125mm Anchor Bolt – Ideal for heavy-duty floor fixing in high-impact zones.

🔗 4. Additional Armco Barrier Accessories

To enhance functionality and extend barrier lifespan, consider these accessories:

🔹 Plastic End Caps – Prevents injury from exposed beam edges.
🔹 Powder-Coated Safety Yellow Posts – Improves visibility and pedestrian awareness.
🔹 Rubber Buffer Strips – Reduces noise and absorbs impact energy.

🛑 Armco Barrier Pedestrian Protection – Safe End Options

For areas with high pedestrian traffic, Armco barriers must be installed with safety ends to prevent injury from sharp edges.

🚸 1. Fishtail Ends

🔹 Best for: Pedestrian zones, car parks, and warehouses.
🔹 Features: Curved design to eliminate sharp edges.
🔹 Benefit: Prevents injury and snagging risks for pedestrians.

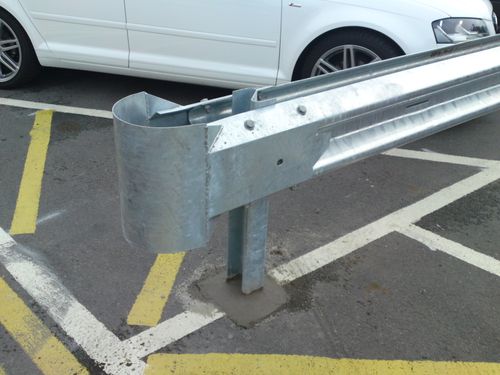

⚠️ 2. Bullnose Ends

🔹 Best for: Industrial areas and loading bays.
🔹 Features: Smooth rounded design with reinforced impact resistance.
🔹 Benefit: Provides extra protection for both vehicles and pedestrians.

🚦 3. Pedestrian Safety Ends

🔹 Best for: Public spaces, parks, and shopping areas.
🔹 Features: Plastic-coated or rubberized finishes.
🔹 Benefit: Highly visible and pedestrian-friendly for urban areas.

🔧 4. Reflective End Caps

🔹 Best for: Low-light areas, night-time safety.
🔹 Features: Reflective strips for enhanced visibility.
🔹 Benefit: Improves safety in dimly lit environments.

✅ Why Armco Barriers Need the Right Fixings & Ends

Installing incorrect fixings or failing to add pedestrian protection can lead to:

Structural failure – Weak installations increase accident risks.
Serious injuries – Sharp edges can harm pedestrians.
Non-compliance with UK regulations – May fail safety inspections.

Using correct bolts and safety ends ensures:

🔧 Secure, long-lasting installations.
🚗 High-impact resistance for roads, car parks, and warehouses.
🏗️ Compliance with BS EN 1317 safety standards.

🔍 Where to Buy Armco Barriers, Fixings & Safety Ends?

For high-quality Armco barrier UK supplies, visit Aremco Barriers – the trusted choice for Armco barrier supplies nationwide.

📞 Need advice on the right fixings? Contact us today! 🚀
